Coiled Tubing

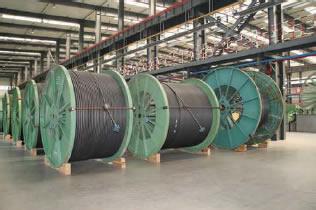

API 5ST CT110 coiled tubing
Coiled tubing and its working equipments are called “universal working machine”, and can be divided into coiled string (including down well working string and velocity string) and coiled line pipe according to uses.
Down well work string mainly used in gas lift induced spray drainage, well flush and clean-up, blunt sand and plugging solving, wax removal, mud replacement, acidification, salvage, fracturing and totally more than 20 kinds of logging, work over, drilling and completion down well work.
Velocity string mainly used in drainage production increase of low permeability wells, also can replace tubing directly used as completion string.
Coiled line pipe mainly used in surface gathering pipe line on-land oil field and gathering pipe line on offshore drilling platform.
Standard: API 5ST
Coiled tubing includes downhole working tubing, and velocity tubing
Max. length: 8000m
Features:
> Without thread connection, high work reliability and security
> Quick move and installation, high working efficiency
> No-stop working with large pressure-bearing capability
> Less working area needed
> Working cost is greatly reduced
Application:
Coiled tubing and its working equipments are called “universal working machine”, and can be divided into coiled string (including down well working string and velocity string) and coiled line pipe according to uses.
Down well work string mainly used in gas lift induced spray drainage, well flush and clean-up, blunt sand and plugging solving, wax removal, mud replacement, acidification, salvage, fracturing and totally more than 20 kinds of logging, work over, drilling and completion down well work.
Velocity string mainly used in drainage production increase of low permeability wells, also can replace tubing directly used as completion string.
Coiled line pipe mainly used in surface gathering pipe line on-land oil field and gathering pipe line on offshore drilling platform.
Standard: API 5ST
Coiled tubing includes downhole working tubing, and velocity tubing
Max. length: 8000m
Materials and chemical compositions, %:
|
Steel grade |
C, max |
Mn, max |
P, max |
S, max |
Si, max |
|
CT70 |
0.16 |
1.20 |
0.025 |
0.005 |
0.50 |
|
CT80 |
0.16 |
1.20 |
0.02 |
0.005 |
0.50 |
|
CT90 |
0.16 |
1.20 |
0.02 |
0.005 |
0.50 |
|
CT100 |
0.16 |
1.65 |
0.025 |
0.005 |
0.50 |
|
CT110 |
0.16 |
1.65 |
0.025 |
0.005 |
0.50 |
Dimensional range
OD: 25.4mm - 88.9mm
WT: 1.905mm - 6.35mm
OD tolerance: -0.25/+0.25mm for all sizes
WT tolerance
|
Specified wall thickness |
Tolerance |
|
< 2.8mm (0.110 inch) |
-0.1mm (-0.005 inch) / +0.2mm (+0.01 inch) |
|
2.8mm (0.110 inch) to 4.4mm (0.175 inch) |
-0.2mm (-0.008 inch) / +0.3mm (+0.012 inch) |
|
4.5mm (0.176 inch) to 6.35mm (0.25 inch) |
-0.3mm (-0.012 inch) / +0.3mm (+0.012 inch) |
Remark: Tolerance is measured before coiling
Tensile properties
|
Steel Grade |
Yield Strength |
Tensile Strength, min |
Hardness, max |
||||
|
Min |
Max |
||||||
|
psi |
MPa |
psi |
MPa |
psi |
MPa |
HRC |
|
|
CT70 |
70000 |
483 |
80000 |
552 |
80000 |
552 |
22 |
|
CT80 |
80000 |
551 |
90000 |
620 |
880000 |
607 |
22 |
|
CT90 |
90000 |
620 |
100000 |
689 |
97000 |
669 |
22 |
|
CT100 |
100000 |
689 |
- |
- |
108000 |
745 |
28 |
|
CT110 |
110000 |
758 |
- |
- |
115000 |
793 |
30 |
