Hydraulic Control Line

Duplex 2205 SAF 2205 Stainless Steel Control Line

10000M

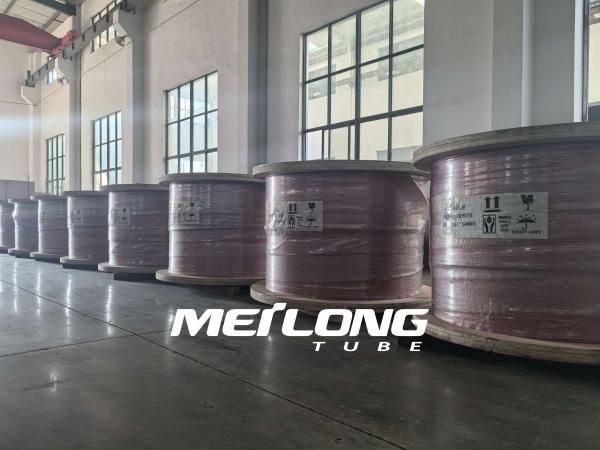

Meilong Tube specially manufactures seamless and redrawn, welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. The tubing is used as hydraulic control lines and chemical injection lines specially serving oil and gas, geothermal industry.

Typical size

Outside diameter of control lines is mainly 1/4’’ (6.35mm).
Wall thicknesses: 0.035’’ (0.89mm), 0.049’’ (1.24mm), 0.065’’ (1.65mm)
Control line tubing is available in lengths from 400 feet (122 meters) to 32,808 feet (10,000 meters). No orbitally butt welds.
Other specifications (1/8’’ to 3/4’’) are available on request.

Important

Each one tubing coil is a completely continuous length without orbital welds.
Each one tubing coil is hydrostatic tested at minimum 10,150 psi.
The test can be witnessed on site by the third party inspectors (SGS, BV, DNV).
Other tests are eddy current test, chemicals, flattening, flaring, tensile, yield, elongation, hardness for the material quality.

Application description for SSSV

A safety valve is a valve that acts as the protector of your equipment. Safety valves can prevent damage to your pressure vessels and even prevent explosions at your facility when installed in pressure vessels.

A safety valve is a type of valve that automatically actuates when the pressure of the inlet side of the valve increases to a predetermined pressure, to open the valve disc and discharge the fluid. The safety valve system is designed to be a fail-safe so that a wellbore can be isolated in the event of any system failure or damage to the surface production-control facilities.

In most cases, it is mandatory to have a means of closure for all wells capable of natural flow to the surface. The installation of a subsurface safety valve (SSSV) will provide this emergency closure capability. Safety systems may be operated on a fail-safe principle from a control panel located on the surface.

The SCSSV is controlled by a ¼” stainless steel control line that is attached to the outside of the well tubing string and installed when the production tubing is installed. Depending on the wellhead pressure, it may be necessary to keep as much as 10,000 psi on the control line to keep the valve open.

Other applications:

Capillary coiled alloy tubing for chemical injection
Bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves
Velocity strings, work strings, and steel tube umbilicals
Geothermal coiled alloy tubing

Control line
Chemical injection line
Electrical line
Multi-line flat pack
Hydraulic line
Tubing encapsulated conductor
Intelligent well completions
Capillary tubing

Alloys for control lines

Austenitic: 316L ASTM A-269
Duplex: S31803/S32205
S32750 ASTM A-789
ASTM A-789
Nickel alloy: N08825
N06625 ASTM B-704; ASTM B-423
ASTM B-704; ASTM B-444
CuNi alloy Monel 400 ASTM B-730; ASTM B-165

Control line tubing features

Close dimensional tolerances
Considerably enhanced mechanical properties
Superior surface finish
High cleanness of inside surface
Controlled ovality, eccentricity

Tubing process and packing

Seamless- pierced, redrawn, annealed (multi-pass circulation process)
Welded- longitudinally welded, redrawn, annealed (multi-pass circulation process)
Packing- Tubing is level wound coiled on the metal / wooden drums or spools.
All drums or spools are packed in wooden crates for easy logistic operation.

Meilong Tube specially manufactures seamless and redrawn, welded and redrawn coiled tubing which are made from corrosion-resistant austenitic, duplex, super duplex stainless steels and nickel alloy grades. The tubing is used as hydraulic control lines and chemical injection lines specially serving oil and gas, geothermal industry.



Typical size



Outside diameter of control lines is mainly 1/4’’ (6.35mm).

Wall thicknesses: 0.035’’ (0.89mm), 0.049’’ (1.24mm), 0.065’’ (1.65mm)

Control line tubing is available in lengths from 400 feet (122 meters) to 32,808 feet (10,000 meters). No orbitally butt welds.

Other specifications (1/8’’ to 3/4’’) are available on request.



Important



Each one tubing coil is a completely continuous length without orbital welds.

Each one tubing coil is hydrostatic tested at minimum 10,150 psi.

The test can be witnessed on site by the third party inspectors (SGS, BV, DNV).

Other tests are eddy current test, chemicals, flattening, flaring, tensile, yield, elongation, hardness for the material quality.



Application description for SSSV



A safety valve is a valve that acts as the protector of your equipment. Safety valves can prevent damage to your pressure vessels and even prevent explosions at your facility when installed in pressure vessels.



A safety valve is a type of valve that automatically actuates when the pressure of the inlet side of the valve increases to a predetermined pressure, to open the valve disc and discharge the fluid. The safety valve system is designed to be a fail-safe so that a wellbore can be isolated in the event of any system failure or damage to the surface production-control facilities.



In most cases, it is mandatory to have a means of closure for all wells capable of natural ow to the surface. The installation of a subsurface safety valve (SSSV) will provide this emergency closure capability. Safety systems may be operated on a fail-safe principle from a control panel located on the surface.



The SCSSV is controlled by a ¼ stainless steel control line that is attached to the outside of the well tubing string and installed when the production tubing is installed. Depending on the wellhead pressure, it may be necessary to keep as much as 10,000 psi on the control line to keep the valve open.



Other applications:



Capillary coiled alloy tubing for chemical injection

Bare and encapsulated hydraulic control line coiled alloy tubing for subsea safety valves

Velocity strings, work strings, and steel tube umbilicals

Geothermal coiled alloy tubing



Control line

Chemical injection line

Electrical line

Multi-line flat pack

Hydraulic line

Tubing encapsulated conductor

Intelligent well completions

Capillary tubing



Alloys for control lines



Austenitic:

316L

ASTM A-269

Duplex:

S31803/S32205

S32750

ASTM A-789

ASTM A-789

Nickel alloy:

N08825

N06625

ASTM B-704; ASTM B-423

ASTM B-704; ASTM B-444

CuNi alloy

Monel 400

ASTM B-730; ASTM B-165



Control line tubing features



Close dimensional tolerances

Considerably enhanced mechanical properties

Superior surface finish

High cleanness of inside surface

Controlled ovality, eccentricity



Tubing process and packing



Seamless- pierced, redrawn, annealed (multi-pass circulation process)

Welded- longitudinally welded, redrawn, annealed (multi-pass circulation process)

Packing- Tubing is level wound coiled on the metal / wooden drums or spools.

All drums or spools are packed in wooden crates for easy logistic operation.




Duplex 2205 stainless steel control line, SAF2205 stainless steel control line, SAF2205 stainless steel hydraulic control line
